If you are looking for the absolute badass machine, you will find it in our new RENDER 10.0 HD 750! “Sky is the limit” is the motto of our product managers, every detail to perfection thought and without any compromise. With the new Bosch Performance CX Gen4 Smart System you have one of the best drive systems currently available and are thus well prepared for the future.

To download the EG-Certificate of Conformity for Radon e-bikes: >CLICK HERE<

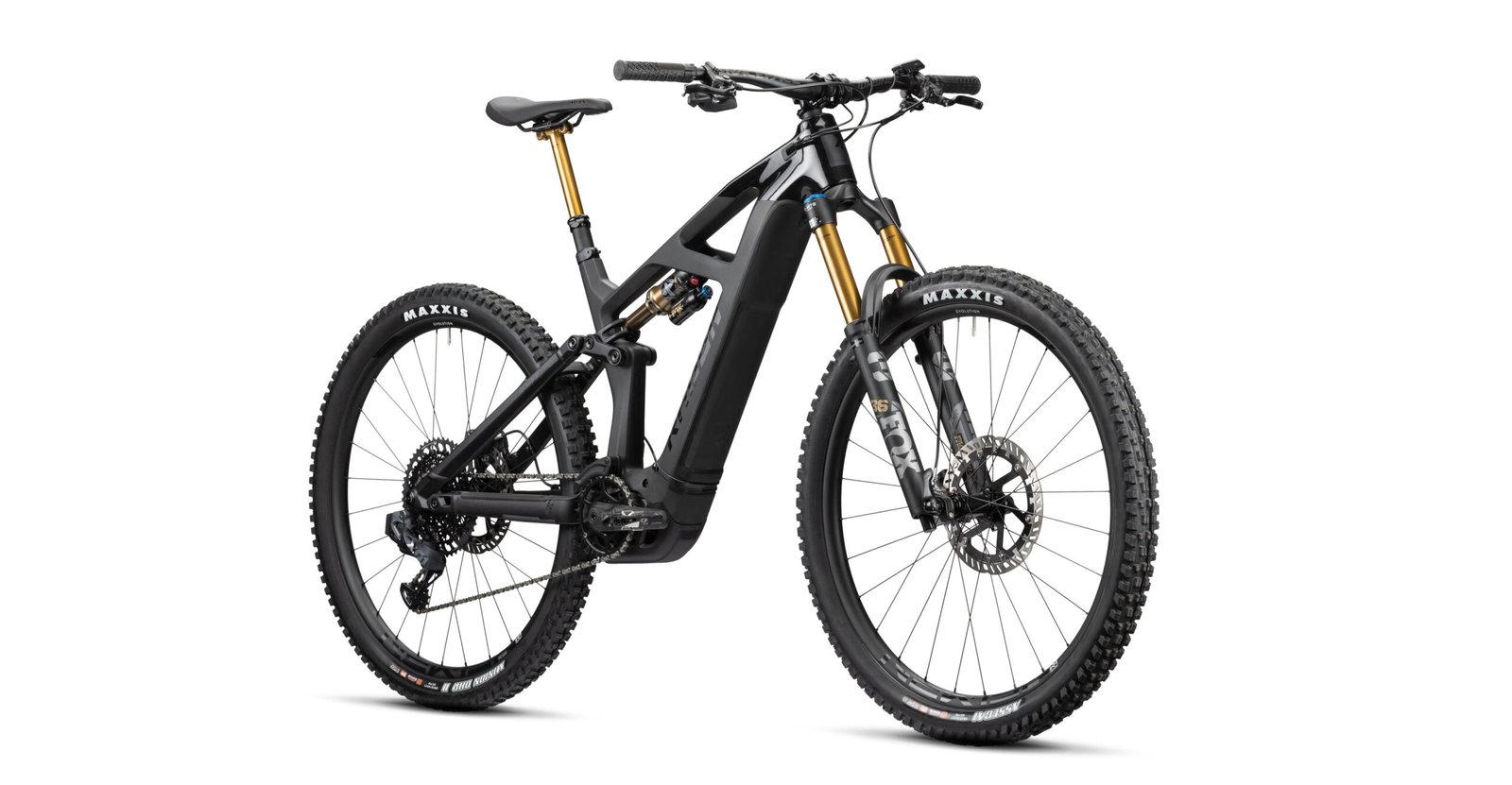

Highlights of the Render 10.0 HD 750

The powerful Bosch Performance CX drive unit offers 85 Nm of torque and 250 watts of maximum power, which means a pedal assistance of up to 340% and thus guarantees you power in every trail situation. The 750 Wh Bosch Powertube battery is elegantly integrated into the down tube, can be easily removed when needed and, with its large capacity, provides enough power for long and extended enduro tours. The revised frame also offers a speed sensor integrated into the dropout and a cut-out in the top tube to integrate a Bosch Smart Controller for upgrade requests. In the chassis, we offer the best, that the market currently offers: the Fox 36 from the Factory series offers full 160mm travel and can be adjusted thanks to the legendary FIT GRIP2 cartridge to your driving skills. Separate setting for both high-speed and low-speed compression as well as high-speed and low-speed rebound make the tuning heart beat faster. You will be rewarded with a fork perfectly adjusted to you, which responds very soft and smoothes out even the hardest hits and drops. The fork is complemented by the Fox Float X, also from the Factory series and thus noble Kashima Coating. The 140mm travel at the rear are tuned sporty and provide a playful handling on your favorite trail. The next highlight you discover at the sight of the electronic SRAM Eagle 1×12 shifting system with parts from the GX and X01 series. No annoying cables, self-adjusting rear derailleur and modern AXS Rocker paddle on the handlebars bring the shifting experience to a whole new level and a smile with every shift. Should it be really rough and the conditions become uncomfortable, you have the brute power of the four-piston brake Magura MT7 to the side – this is one of the most powerful brakes on the market and can be finely dosed to give away no traction. In the tires we rely on the dream combo, consisting of Maxxis Assegai and Minion DHR II – of course in the 3C, MaxxTerra, Exo+ top version. So that the Enduro tires can call up their full potential, we install the noble and fantastically light Newmen Evolution SL E.G.30 with silent Fade hub and 30mm inner rim width. So that no wishes remain unfulfilled. As the icing on the cake we mount the Fox Transfer Factory dropper post and a beautiful Race Face Turbine R cockpit. The RENDER 10.0 HD – what comes beyond sky?

The Render Family

The RENDER is now a modern classic that flaunts horsepower and continuous performance. Our trail all-rounder is powered by Bosch’s most powerful motor, the Performance Line CX, with its 85 Nm of torque and a maximum assist of 340%. And it does that for a long time, because the RENDER down tube has the large Powertube battery with 625 Wh of capacity. This is beautifully integrated into the down tube, which houses all of the cables for the gear system or the vario support in one rail system. The front frame is made of carbon and is unique in its shape with the wing-like connection from the top to the down tube, which also houses the shock. 160 mm of travel on the front and 140 mm on the rear together with the 29” wheels provide tremendous running smoothness and security. Short chain stays and a sophisticated geometry keep the RENDER very agile and maneuverable. The central seat position gives plenty of control of the bike and invites you to take epic trips. RENDER your ride.

The Render Frame

Our RENDER is a modern classic. Since the season 2022, it is also coming as a revision for the new Bosch Smart System. What remains is the ultra-modern, lightweight and very rigid carbon frame with the concise wing between the top tube and down tube, which also elegantly accommodates the shock. Also retained is the 140 mm of travel at the chainstay, which we combine at the front with 160 mm suspension forks. The high-capacity 750 Wh battery is housed in the down tube, which powers the brutally strong Bosch Performance CX motor with its 85 Nm. Also new is the charging socket for the battery, which is located on the left side of the seat tube and is protected from dirt by a small, rotating disk when not in use. The speed sensor sits in the latest RENDER variant in the dropout. The signal-giving magnet rotates in the rear brake disk. Optionally, the new RENDER frame can accommodate a display in the top tube, where you then have all the data directly in view, which is extremely convenient.

The UD-Carbon Finish

It is a common feature of UD carbon that you can see individual layers of carbon under the glossy or matt clear coat – each frame is unique due to the manufacturing process by hand and is therefore one of a kind. The fibers are arranged in parallel during this manufacturing process, so there is no need for a specially laid “visible layer” or carbon layer.

The all new RADON RENDER E-MTB

System weight max: 135 kg (body weight + bike + equipment)
