Radon Jab 9.0
Configurazione
| Telaio: | JAB, Weight 2.280 g, Max. width tire 2.4″, Flip Chip for geometry adjusting, Hanger #10240 |
| Materiale del telaio: | Full Carbon mainframe and rear triangle |
| Dimensione delle ruote: | 27.5″ |
| Velocità: | 1 x 12 |
| Colore: | military / UD carbon |
| Forcella: | RockShox ZEB Select, Charger RC, DebonAir+, Boost, Rake 44mm |
| Ammortizzatore: | RockShox Super Deluxe Select+, DebonAir+, Trunnion Metric Size 205 x 65mm, Bushing size Trunnion / 8 x 22.2mm |
| Corsa sospensione: | 170mm / 160mm |

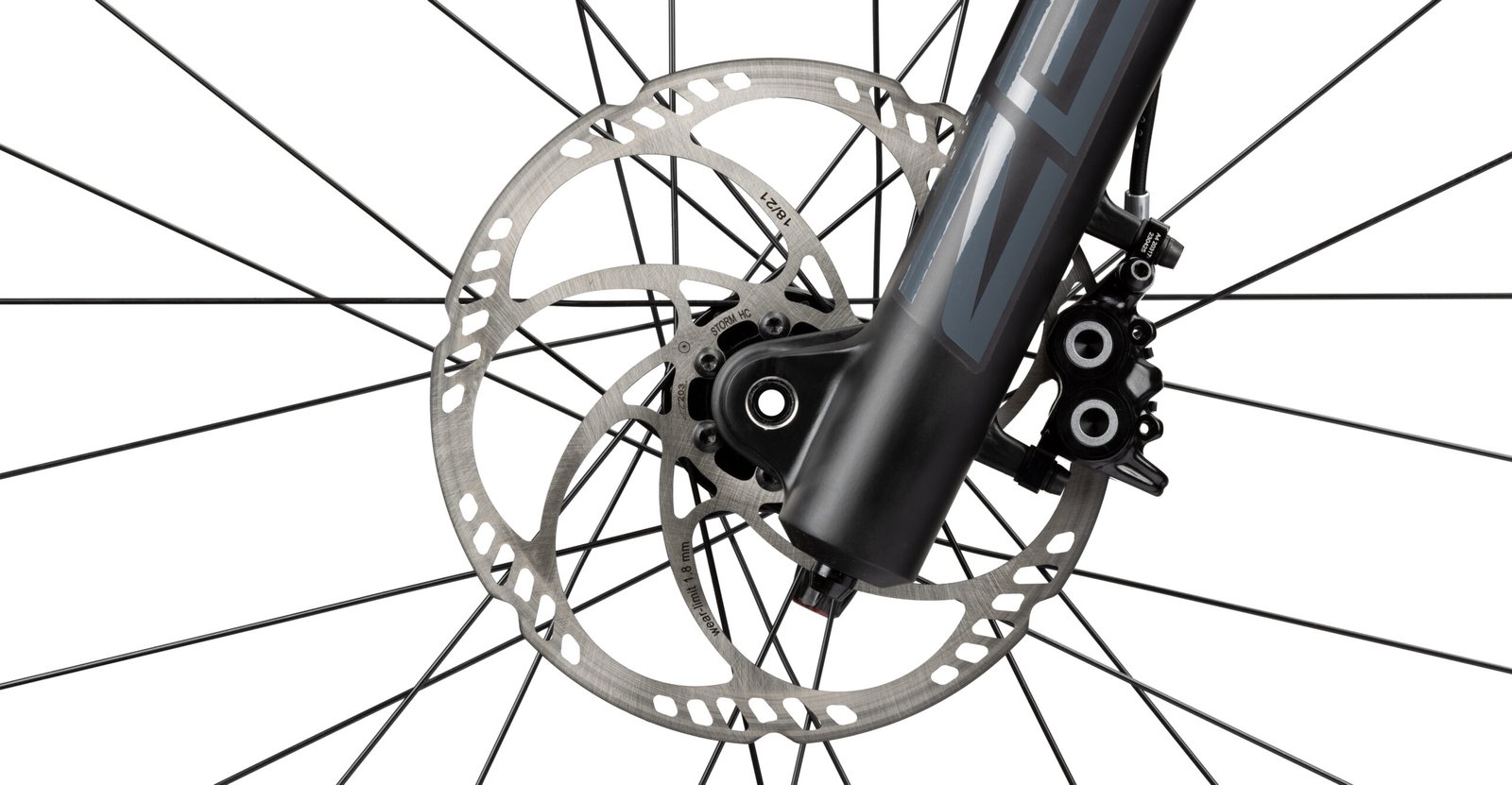

| Freni: | Magura MT5 |
| Dischi freno: | Magura Storm HC, 203/180mm, 6-bolt |
| Serie sterzo: | Acros AzX, ZS44/ZS56 |
| Attacco manubrio: | Race Face Æffect R, Ø35mm (16″: 40mm, 18″: 40mm, 20″: 50mm, 22″: 50mm) |
| Manubrio: | Race Face Chester, 35 x 780mm, 35mm rise |
| Manopole: | SDG Thrice |
| Sella: | SDG Bel Air V3 |
| Reggisella: | Radon Competition Dropper, 31.6mm (16″ 125mm travel, 18″ 150mm travel, 20″ 150mm travel, 22″ 150mm travel) |

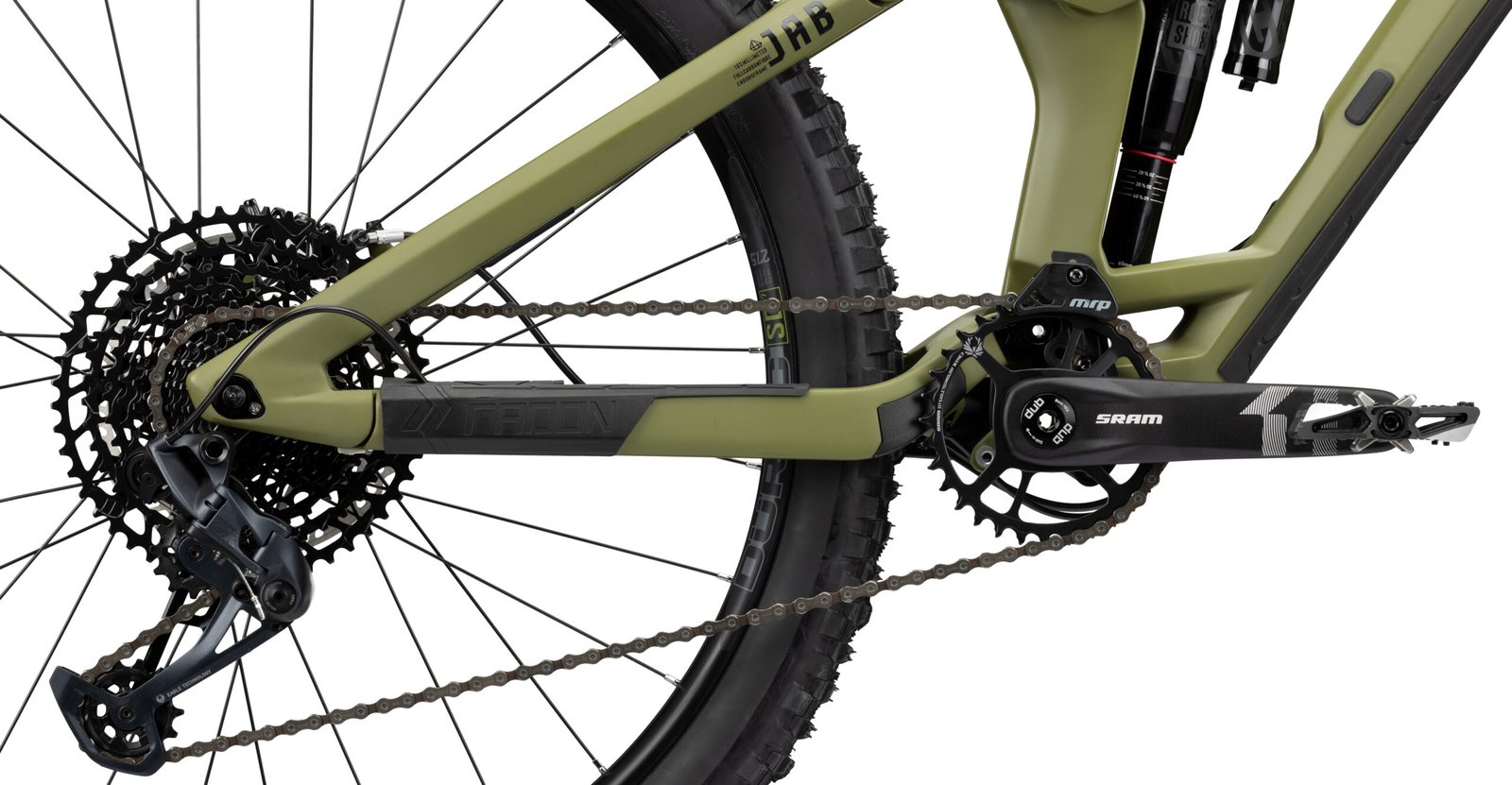

| Guarnitura: | SRAM X1 1000 Eagle, DUB, 32T, Boost, 170mm |
| Movimento centrale: | SRAM DUB, Pressfit, 92mm |
| Cambio posteriore: | SRAM GX Eagle, 12-speed |
| Comandi cambio: | SRAM NX Eagle, Shiftmix |
| Guidacatena: | MRP 1X, ISCG05 |
| Cassetta: | SRAM NX Eagle PG-1230, 11-50 |
| Catena: | Sram SX Eagle |
| Copertone anteriore: | Maxxis Minion DHF 3C, Maxxterra, EXO, TR, 27.5″ x 2.5″ WT |
| Copertone posteriore: | Maxxis Minion DHR II 3C, Maxxterra, EXO, TR, 27.5″ x 2.4″ WT |
| Coppia di ruote: | SUNringlé Düroc SD37, 32mm, 110/148mm |
| Pedali: | non incluso nella fornitura |
| Peso totale massimo ammissibile: | 115 kg (peso del corpo + bici + attrezzi) |
| Peso: | a partire da 14,50 kg |
Il prezzo originale era: 1 366,00 €.1 089,00 €Il prezzo attuale è: 1 089,00 €.

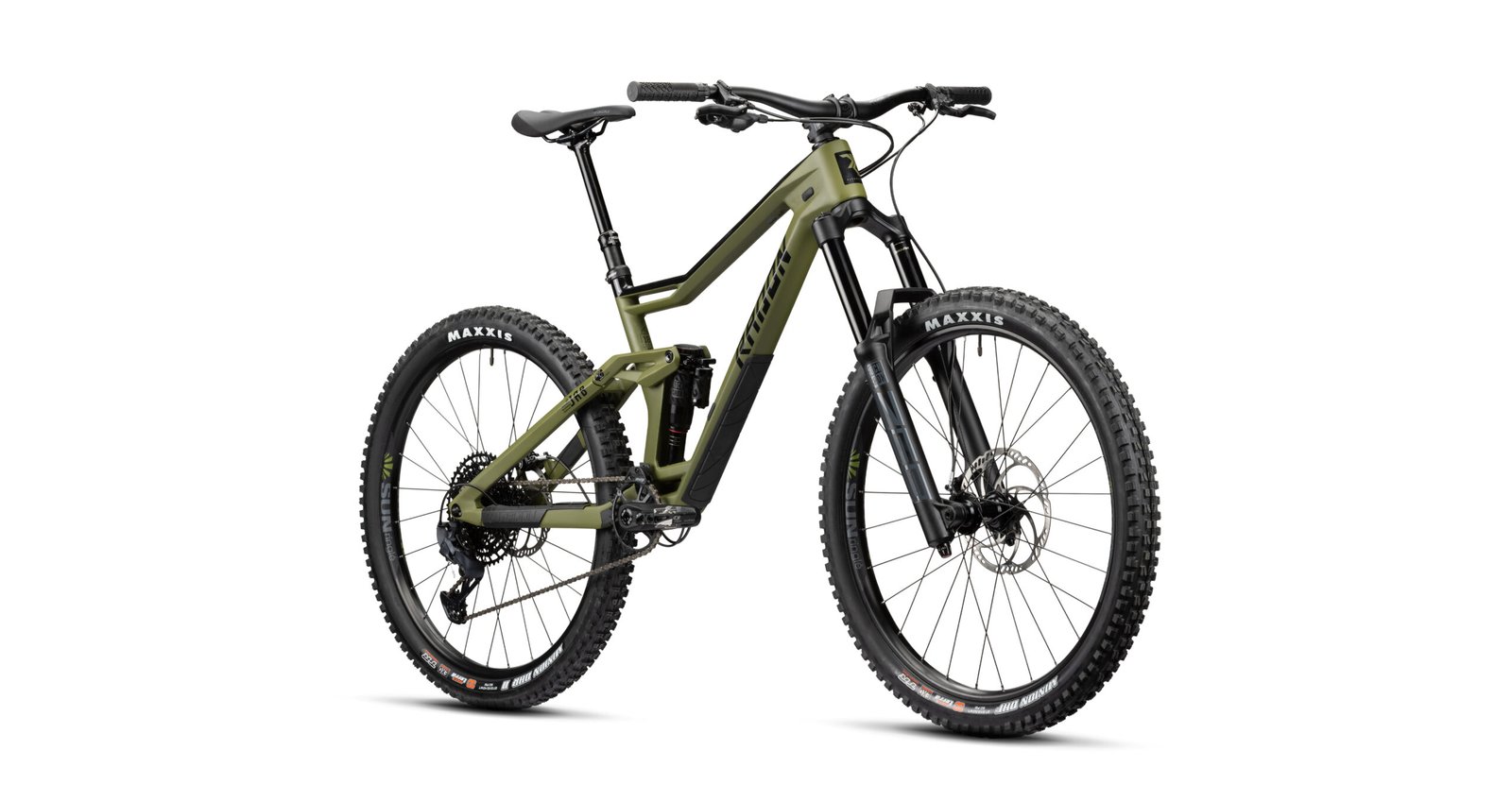

The JAB 9.0 goes into the next round. With its full-fledged Enduro equipment, even the entry-level model makes the hearts of every trail rider beat faster. With its lightweight 2,200 gram full carbon frame, the JAB is still one of the lightest 170mm fullys and thanks to its 27.5″ wheels it is also a very agile and playful bike.
Highlights of the Jab 9.0
As for the suspension, you can look forward to a dream combination from RockShox: at the front the easily adjustable ZEB Select with Charger RC cartridge with voluminous 38mm stanchions, at the rear the Super Deluxe Select+ with large DebonAir+ air chamber for the finest response. If you’re flying downhill, you need a brake to match – here you can enjoy the powerful yet finely controllable Magura MT5 with 4 pistons per caliper. After the downhill is before the uphill. The 12-speed SRAM Eagle derailleur with a mix of the NX and GX series offers you a huge range and tight gear changes as standard. Our product managers have also done a great job with the ergonomics. The ergonomic SDG Bel Air V3 saddle sits on the adjustable RADON Competiton variable post to offer comfort and control on long tours as well as in technical terrain in combination with the Race Face cockpit. To ensure that grip is not neglected, this season we have again mounted the popular Maxxis Minion DHF/DHR II combination on the stable SUNringlé Düroc SD37 with 32mm inner rim width. The JAB 9.0: our price-performance hit!
The Jab Family
Our JAB frame is high-end in its purest form, it serves as a top base for light and playful enduros. In the maneuverability help the 27.5″ wheels as well as the agile geometry. Nevertheless, reserves for rough terrain are on board, 160-170mm travel are available depending on the equipment variant. We combine the JAB frame with the highest quality equipment, so that purebred enduros are developed and that already from a price around 3.500 €. The JAB look in stealth-look is in search of their equals and makes your bike unique.
The UD-Carbon Finish
It is a common feature of UD carbon that you can see individual layers of carbon under the glossy or matt clear coat – each frame is unique due to the manufacturing process by hand and is therefore one of a kind. The fibers are arranged in parallel during this manufacturing process, so there is no need for a specially laid “visible layer” or carbon layer.
Please note that pedals are not included!
4054571413666
2023
| Colore | military / UD carbon |
|---|---|
| Consegna | da 3 a 7 giorni |
| Marca | RADON |
| Garanzia | 2 anni |
| Misurare | 16", 18", 20", 22" |
| Restituzione del prodotto | Reso entro 14 giorni |
