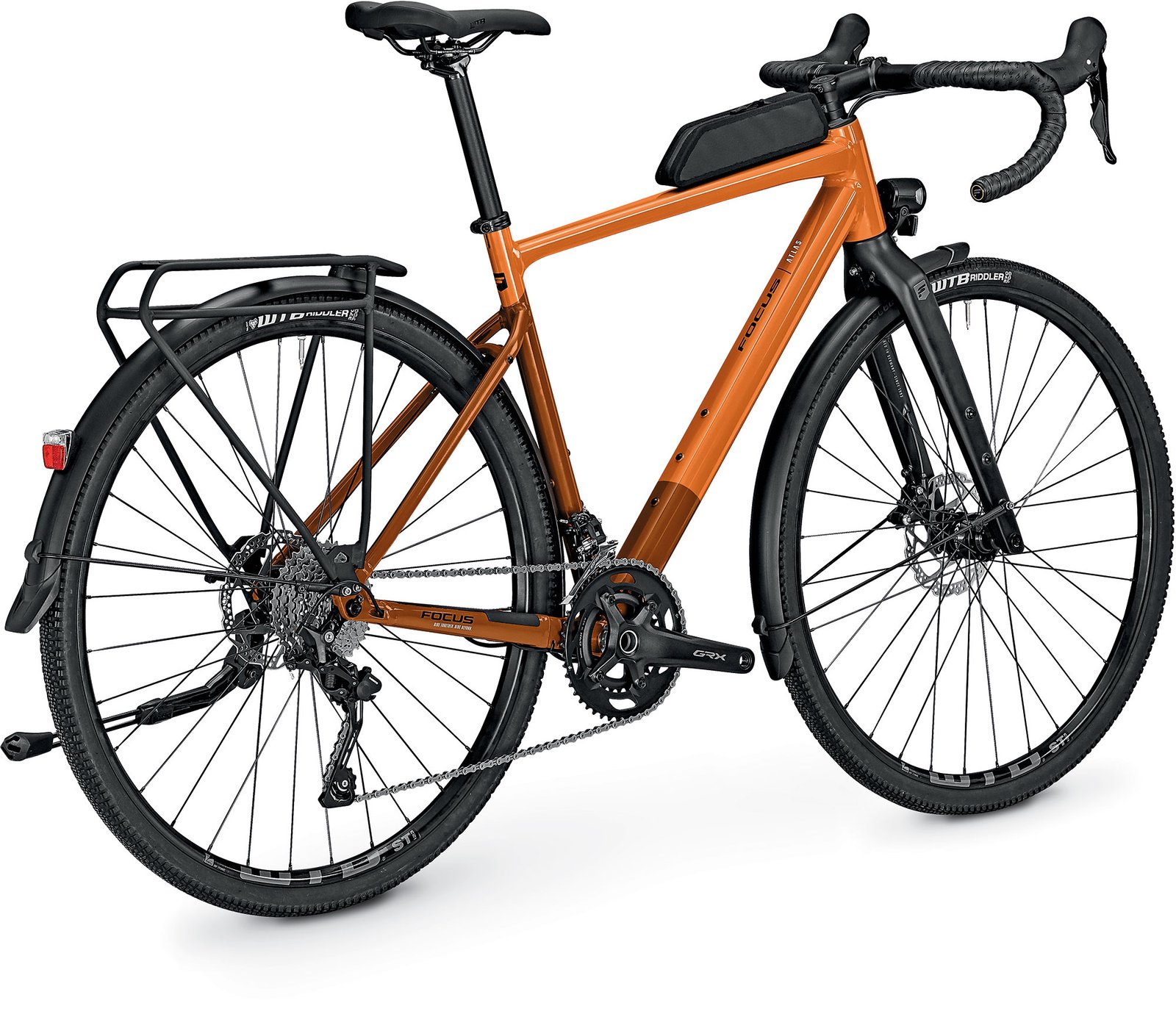

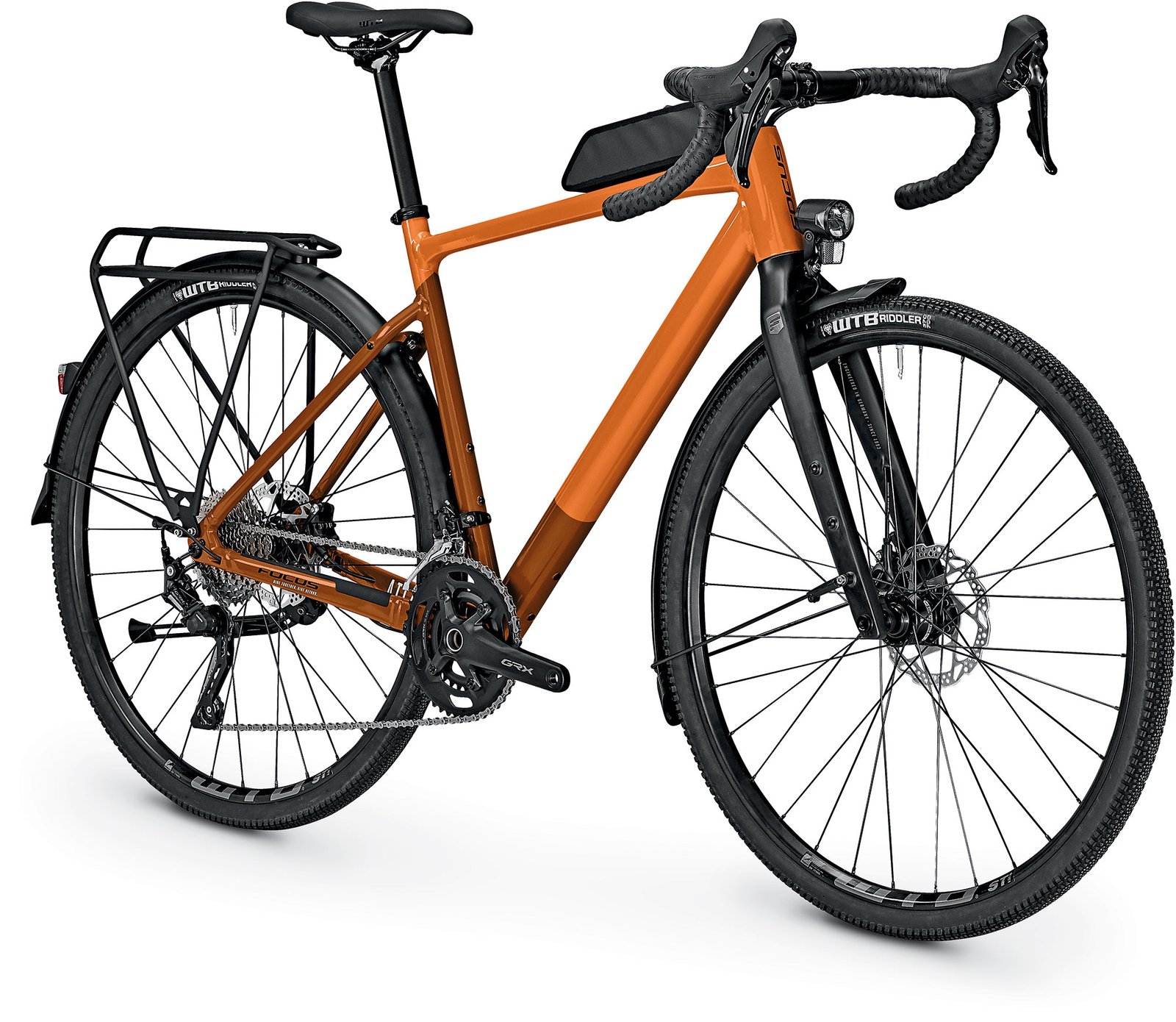

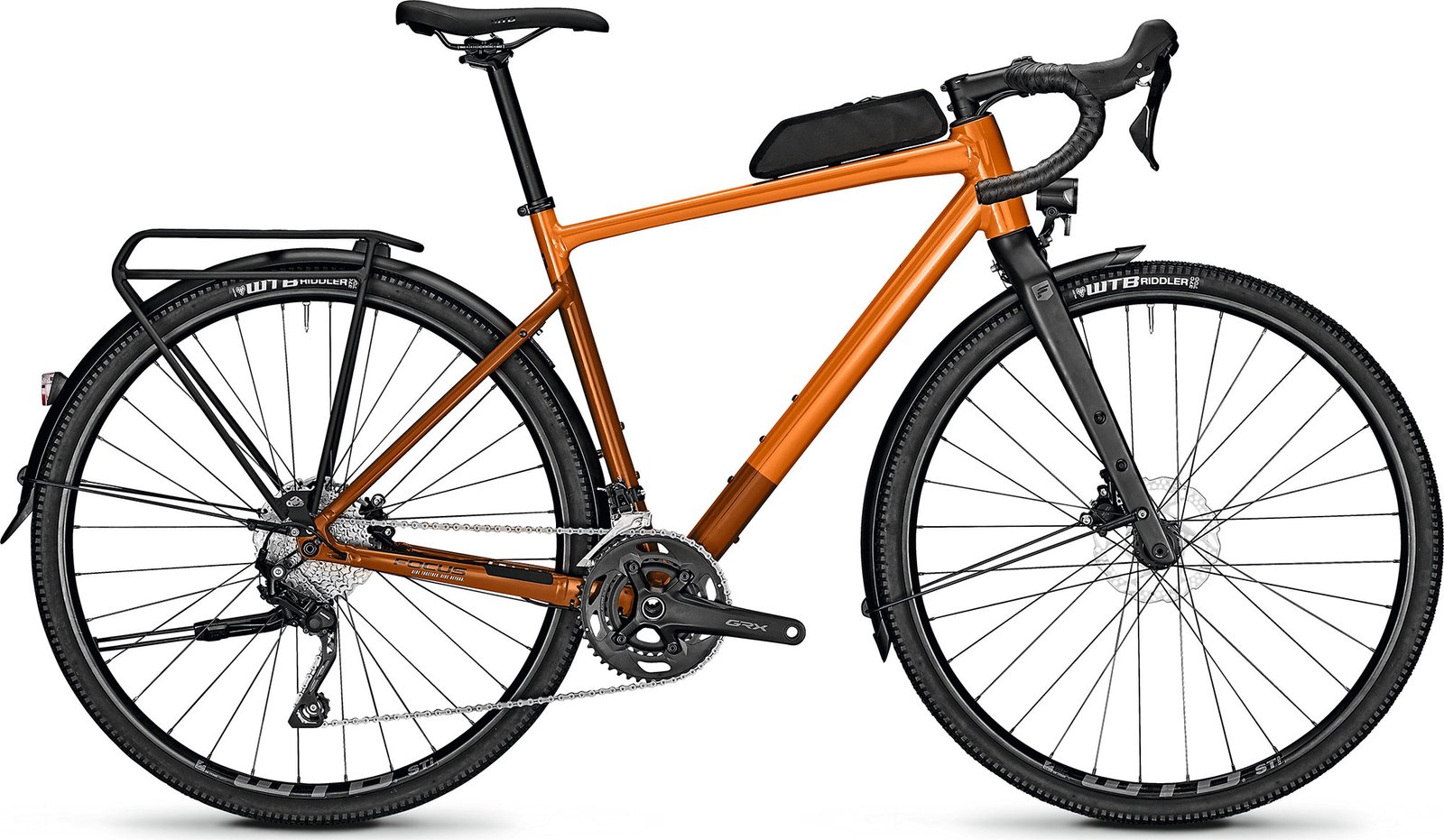

Focus ATLAS 6.7 EQP
Configurazione
| Telaio: | Aluminium, disc, BSA, 148×12 mm thru axle, flat mount 160/160 mm, internal cable routing |
| Materiale del telaio: | alluminio |
| Dimensione delle ruote: | 28″ |
| Velocità: | 2×10 |
| Colore: | Rustorange / Rustbrown |
| Forcella: | Carbon, disc, 110×12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points |
| Freni: | Shimano GRX ST-RX400 + BR-RX400 |
| Dischi freno: | 160 mm / 160 mm |
| Leve freno: | Shimano GRX BL-RX400, 10-speed |
| Attacco manubrio: | Aluminium, 31,8 mm, 6°, 70 mm (XS), 80 mm (S), 90 mm (M, L), 100 mm (XL) |
| Manubrio: | FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10°, XS (420 mm), S, M (440 mm), L, XL (460 mm) |
| Nastro manubrio: | FOCUS Bartape SL |
| Sella: | WTB SL8 |
| Reggisella: | Aluminium, 27.2 mm, 0 mm set-back, 350 mm |
| Guarnitura: | Shimano GRX FC-RX600, 10-speed, 46/30T, 170mm (XS), 172,5 (S, M), 175 (L, XL) |
| Cambio posteriore: | Shimano GRX RD-RX400, 10-Speed |
| Comandi cambio: | Shimano GRX ST-RX400, 10-speed |
| Deragliatore anteriore: | Shimano GRX FD-RX400 |
| Cassetta: | Shimano CS-HG5010, 10-speed, 11-36T |
| Catena: | Shimano Tiagra CN-4601, 10-speed |
| Copertoni: | WTB Riddler, 700 x 37C |
| Mozzo anteriore: | Shutter Precision PL-7 Dynamo Hub, 110×12 mm |
| Mozzo posteriore: | Novatec D982TSB, 12×148 mm |
| Cerchi: | WTB ST i23 TCS, tubeless ready |
| Fanale anteriore: | Herrmans H-Black MR8, LED |
| Luce posteriore: | Herrmans H-Trace Mini, LED |
| Portapacchi: | 2-leg, alloy, 20kg max. load |
| Pedali: | non incluso nella fornitura |
| Altri dettagli: | parafanghi, cavalletto |
| Peso totale massimo ammissibile: | 120 kg (peso del corpo + bici + attrezzi) |
| Peso: | 12.7 kg |
Il prezzo originale era: 1 289,00 €.1 033,00 €Il prezzo attuale è: 1 033,00 €.
“Pushes boundaries: The FOCUS ATLAS 6. series offers up to 47 mm tyre clearance and all mounting options for bikepacking adventures. Whether bad weather, demanding surface, steep climbs or long distances – the fast and comfortable gravel bike offers full control and maximum versatility. A wide handlebars with flare as well as disc brakes provide full control and comfort when riding the sturdy and safe aluminium bike with a carbon fork and integrated cable routing. The ATLAS 6.7 EQP is already fully equipped with a specially developed pannier rack, mudguards, stand and strong light system. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.
Made to lose – the new gravel bike Focus Atlas
The ATLAS is our first gravel bike. It is our all-round bike, which is not made to bring you on top as the fastest, but it will handle everything on the way. It is like a reliable good old friend, with a big pinch of trail pleasure.
Who would build a bike “made to lose” you might ask. What sounds absurd, can make a lot of sense. When appointments and smartphones have control over daily life, it is more than ever important to find moments to escape. To celebrate small things: commuting through the park to get to the office or going on a short weekend trip with friends on the bike into nature. We have built a bike that will accompany your escape.
The ATLAS is a rather long bike: the combination of the longer reach and the short stem gives the bike a really smooth ride. The high frontend gives confidence to the rider while going downhill. To keep our gravel bike playful the ATLAS frame got really nice short chainstays.
The ATLAS is not made for winning races, setting world records, or beating people. It’s made to lose. Lose your mind, lose track of time, to lose yourself. It’s for getting out in nature, having adventures, meeting people, and generally just having a great time.
Features – Focus ATLAS 6.7 EQP
- Aluminium frame and carbon fork with integrated C.I.S. cable routing, plus specially developed pannier rack, mudguards and strong lighting system
- Shimano GRX400 2×10 groupset with special gravel ergonomics for stable and dependable shifting on any terrain
- Reliable stability and long-lasting quality: Double-sealed Novatec Road Boost hubs and 23 mm wide WTB rims
Highlights
Fully equipped
The ATLAS 6.7 EQP leaves nothing to be desired for your travel adventures or daily commutes: it is already fully equipped with a rack, fenders and a stand. The rack can carry up to 20 kg and on the carbon fork, you can mount carriers taking up to 3 kg each side. Furthermore, a lighting system with hub dynamo and integrated cable routing constantly provides bright light.
Huge tyre clearance
The ATLAS comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 51 mm. Therefore, you have plenty of opportunities to specificate your ATLAS appropriately for your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.
Comfort and control on all terrain
Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with C.I.S. cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.
Technologies
Cockpit Integration Solution | C.I.S
The Focus Cockpit Integration Solution (C.I.S.) provides the first functional stem with internal cable routing for mechanical shifting. All cables run from the handlebars into the stem and through the headset into the frame. For optimum shifting and braking quality, Focus has chosen a bending radius that allows smooth-running cables.
Road Boost
The ROAD BOOST hubs are wider and line up the cassette with the chainrings, so the chain runs perfectly again. At the same time, the wider hubs provide additional stiffness to the wheels, and as a result a better riding performance and higher durability.
Please note that pedals are not included!
Made to lose – FOCUS Atlas Gravel Bike
How to pack your bikepacking gear on a FOCUS ATLAS gravel bike
4000990426428
2024
| Colore | Rustorange / Rustbrown |
|---|---|
| Consegna | da 3 a 7 giorni |
| Garanzia | 2 anni |
| Marca | Focus |
| Misurare | L, M, S, XL, XS |
| Restituzione del prodotto | Reso entro 14 giorni |
